Description

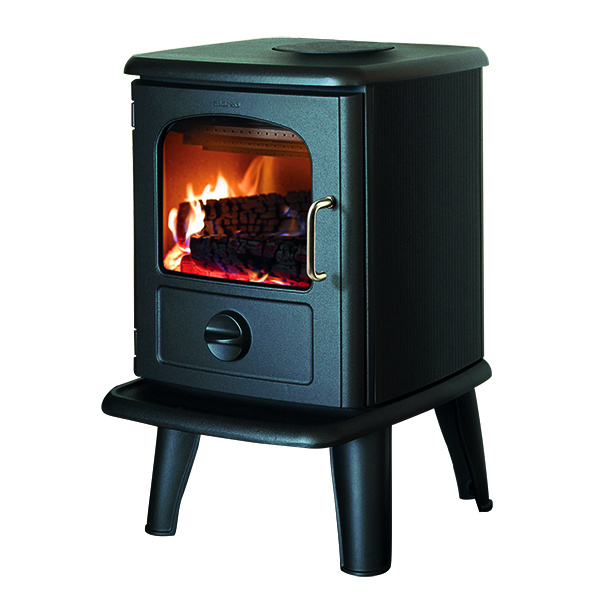

The Morsø 3100 series incorporates the best from the classic Morsø design, but takes advantage of the latest combustion principles. Efficient and environmentally friendly multi-fuel stoves The 3112 is equipped with riddling grate and ashpan, making it easy to remove ash and clean the stove. It is manufactured using the latest combustion principles with tertiary air supply and meet the most stringent environmental requirements. It can be fired with wood, briquettes or approved smokeless fuel and is suitable for heating areas of up to 75 cubic metres.
PROPERTIES
- Pre-heated combustion air
- Airwash system
- Removable handle
TECHNICAL DATA
- Radiant Heat
- 10 year limited warranty
- Gasketed seams for tight seals
- Chromium treated internal casting for durab
- Reversible flue collar
- Non catalytic burn technology
- Clean-burning air wash system
- Secondary air supply
- Riddling grate system/shaker grate
FUEL
- Wood
APPROVALS
- EPA
SPECIFICATIONS
| Maximum Heat | 30,000 |
| Log size | 12″ |
| Max. Area Heated | 1000 ft2 |
| Firebox Dimensions | 13 1/4 W x 12 1/2 D |
| Firebox volume/capacity | 0.9 ft3 |
| Outside air supply | Available |
| Gross Weight | 245 lbs |
| Rated Output (kw) | 5 |
| Operating Output (kw) | 3-6 |
| Heats (m2) | 45 – 90 |
| Height (mm) | 630 |
| Width (mm) | 440 |
| Dept (mm) | 450 |
| Weight (kg) | 95 |
| Chamber Width (cm) | 33 |
CLEARANCE TO COMBUSTIBLES
| Rear (mm) | 200 |
| Sides (mm) | 600 |
| Basic Clearance using single wall pipe top vent | |
| Stove to side wall | 20″ |
| Stove to rear wall | 12″ |
| Stove to corner | 17″ |
| Basic Clearance using double wall pipe top vent | |
| Stove to side wall | 20″ |
| Stove to rear wall | 8″ |
| Stove to corner | 15″ |
