PRODUCT DESCRIPTION
The Stuv 16-IN Wood Fireplace Insert
Stûv 16/58-IN – 23” wide x 24″ tall x 17.5″ deep
48,000 BTU – 17″ Log Length – 17 1/2″ x 16 3/8″ Glass – 1.4 ft3 firebox Weight: 180 lbs
Stûv 16/68-IN – 27” wide x 24″ tall x 17.5″ deep
56,000 BTU – 21″ Log Length – 21 3/8″ x 16 3/8″ Glass – 2 ft3 firebox Weight: 205 lbs

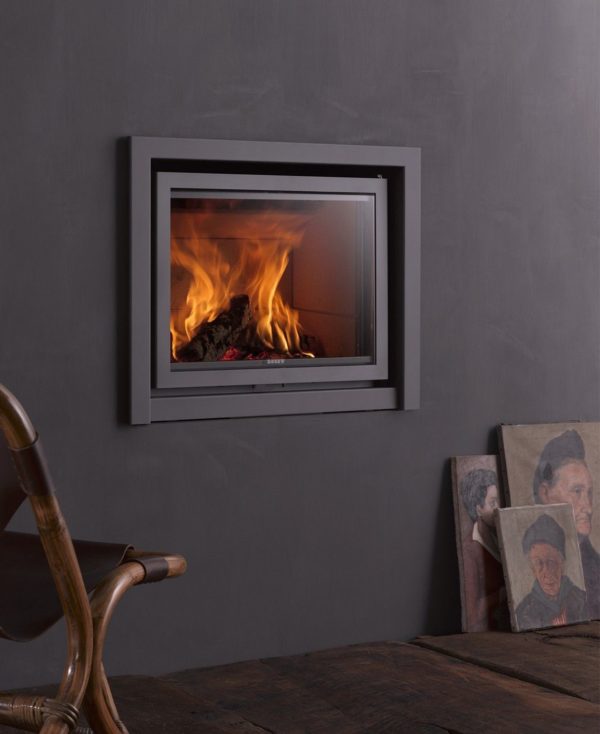

The Stuv 16-Z Zero-Clearance wood Fireplace
Stûv 16/58-Z – 29” wide x 30.5″ tall – 48,000 BTU – 17″ Log Length
17 1/2″ x 16 3/8″ Glass – 6″ or 7″ Chimney – 1.5 gr/hr – 270lb
Stûv 16/68-Z – 33” wide x 30.5″ tall – 56,000 BTU – 21″ Log Length
21 3/8″ x 16 3/8″ Glass – 6″ or 7″ Chimney – 1.9 gr/hr – 290lb
Installation manuals:
Stuv 16-Z (zero-clearance fireplace)
