Rais Q-Tee (without base)

Add to Quote
Categories: ,

Description

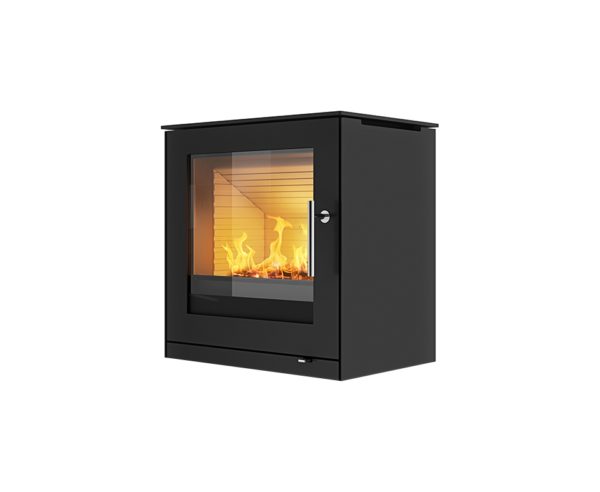

RAIS Q-Tee 2 without base is a smaller stove with a very large combustion chamber – which makes it a perfectly efficient heat source for small places, or use in a masonry fireplace. The large window offers a magnificent view of the flames. The handle is a unique feature – a masterpiece, created by the best craftsmen. Good environmental specifications. The firewood bench boxes on the sides breaks the symmetry and is very functional. Available with or without base, small, and large bench boxes. Good environmental specifications with the lowest emissions tested for any non-catalytic wood stove at .9 /gph.

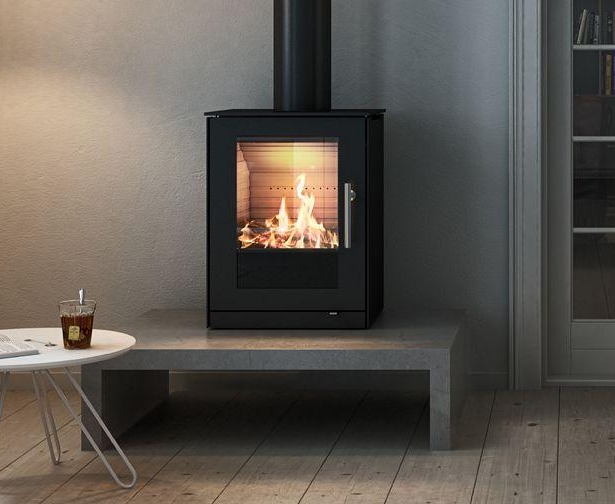

Constant Bench is an accessory that can act as a contemporary base, which creates warm seating around the fire.



Click here for CBI TEST REPORT

Click for Manual

SPECIFICATIONS:
HEAT
BTu output
27 kBTu
Heat range (min-max)
10-27 kBTU
Heating capacity (25-68 degrees F)
1400 sq ft
Emissions
0.9 g/hr
Efficiency
75+%
DIMENSIONS (W-D-H)
Stove Exterior
22 9/10 – 17 – 27 7/10 “
Firebox Interior
17 1/2 – 9 3/5 – 10 1/5 “
Log Length
17 “
Pipe Diameter
6 “
Distance from center of top exit to the back edge of the top plate
5 1/8 “
Distance from floor to center of top exit
23 2/5 “
Center pipe in top to back edge of stove
6 “
Distance from floor to center of rear exit
18 7/10 “
Floor to center of outside air connector
4 3/10 “
DISTANCE TO FLAMMABLE MATERIAL
Distance to combustible side wall
15 “
Distance to combustible back wall
15 “
Corner Clearance to Combustible
13 “
WEIGHT
Stove
282 lb
FEATURES
STANDARD
OPTION
Color: Black
Glass Door
X
Heat Shield
X
Large Box
X
Shaker Grate and Ash Pan
X
Small Box
X
Steel Door with Glass
X
Top or Rear Smoke Exit
X
Air-Cooled Handle
DOWNLOADS:

Owner’s Manual
