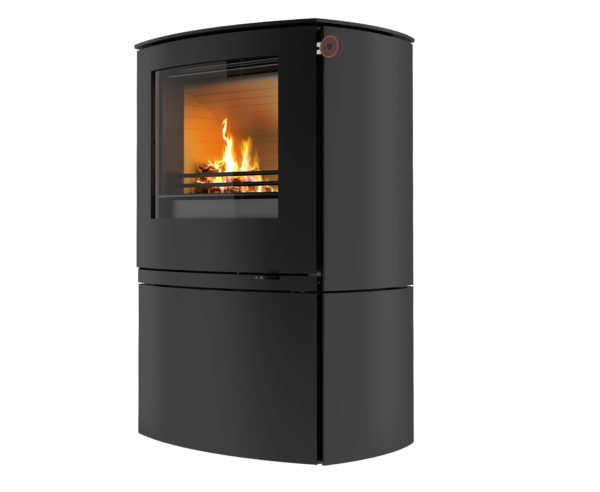

Rais Q-Tee C wood burning stove

Add to Quote
Categories: ,

Description

The Q-Tee II now has a new curve appeal!   The Q-Tee II C  has rounded sides and curved glass door that rethinks the design of this beautifully contoured stove series.

Equipped with “cabinet-style” door  makes opening and closing the firebox a breeze.

Functional and stands out with it’s superior environmental performance of .9/gph emissions.

Rais Q-Tee II C is regarded as one of the cleanest burning non-catalytic stoves on the North American market.  The large fire box of this stove accepts a 17″ piece of wood and can burn for many hours into the night.  The large window with stay-clean technology offers a magnificent view of the flames.  The door is available in a steel frame, or can be enhanced with an extra piece of glass on the outer surface as an option, so the whole door appears to be glass.  Base comes standard with full cover plate, or can also be taken out to be used as a full open wood storage area.  Outside-air adapter system is also an option.

Click here for CBI test report for Qtee-II C

Click for Manual

SPECIFICATIONS:
HEAT
BTu output
27 kBTu
Heat range (min-max)
10-27 kBTU
Heating capacity (25-68 degrees F)
1400 sq ft
Emissions
0.9 g/hr
Efficiency
75+%
DIMENSIONS (W-D-H)
Stove Exterior
26- 19 – 42 1/3 “
Firebox Interior
17 1/2 – 9 3/5 – 10 1/5 “
Log Length
17 “
Pipe Diameter
6 “
Distance from center of top exit to the back edge of the top plate
5 1/8 “
Distance from floor to center of top exit
38 2/5th “
Distance from floor to center of rear exit
33 2/5 “
Floor to center of outside air connector
4 3/10 “
DISTANCE TO FLAMMABLE MATERIAL
Distance to combustible side wall
14 “
Distance to combustible back wall
12 “
Corner Clearance to Combustible
11 “
WEIGHT
Stove
439 LB
FEATURES
STANDARD
OPTION
Color: Black
Glass Door
X
Heat Shield
X
Outside AirSystem
X
Shaker Grate and Ash Pan
X
Steel Door with Glass
X
Top or Rear Smoke Exit
X
Air-Cooled Handle
