Lopi / FPX Large Flush Wood Insert with Rectangular Door – Non-catalytic model – 1 in stock only – Cannot be ordered!
Discontinued non-catalytic model. The newly redesigned model will not be available until 2025 and will likely have a catalytic combuster, which will raise cost and require cleaning of catalyst. This model cannot be ordered! Rectangular firebox with Universal Face and large backer panel - $5,438 plus tax. Excludes delivery or installation.
- Heating Capacity: Up to 2,500 Sq. Ft.
- Maximum Burn Time: Up to 12 Hrs.
- Log Length: 24”
- Maximum BTUs: Up to 83,220 (Burn on high)
- Real World BTUs: EPA tests to determine BTU output are achieved with a single load of wood at each burn rate. At home, you are likely to add more wood to your insert to maintain your desired comfort level. By the simple process of loading your insert with additional wood, you could achieve up to a 20% higher heat output than established during EPA testing.
- Emissions: 1.7 Grams/Hr. (Cord Wood)
- LHV Overall Efficiency:* Up to 79%
- HHV Overall Efficiency:* Up to 73%
- Firebox: 3.0 Cubic Ft.
- Glass Viewing Area: 24 5/8” W x 13” H, 318.9 Sq. In.
*Overall efficiency as tested using B-415.1 using Cord Wood. LHV = Low Heat Value, HHV = High Heat Value.
Owner’s Manual
Large Flush Wood Firebrick Order Form

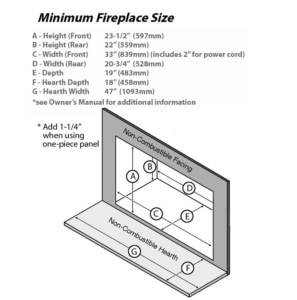

Large Flush Wood Face Installation Instructions n
One-Piece Panel Trim Instructions
4 Pack Custom Surround Panel – Hints and Suggestions
GreenStart Igniter
GreenStart Replacement Parts List
Instructions – High Temperature Wood Insert Wiring Kit
Vent Kit Instructions – Wood Masonry Chimney Reline Kit
Vent Kit Instructions – Wood ZC Chimney Reline Kit
Wood Insert Flue Adapter Instructions – Stainless Steel 4 to 7 Inch Offset
Discontinued non-catalytic model. The newly redesigned model will not be available until 2025 and will likely have a catalytic combuster, which will raise cost and require cleaning of catalyst. This model cannot be ordered! Rectangular firebox with Universal Face and large backer panel - $5,438 plus tax. Excludes delivery or installation.
- Heating Capacity: Up to 2,500 Sq. Ft.
- Maximum Burn Time: Up to 12 Hrs.
- Log Length: 24”
- Maximum BTUs: Up to 83,220 (Burn on high)
- Real World BTUs: EPA tests to determine BTU output are achieved with a single load of wood at each burn rate. At home, you are likely to add more wood to your insert to maintain your desired comfort level. By the simple process of loading your insert with additional wood, you could achieve up to a 20% higher heat output than established during EPA testing.
- Emissions: 1.7 Grams/Hr. (Cord Wood)
- LHV Overall Efficiency:* Up to 79%
- HHV Overall Efficiency:* Up to 73%
- Firebox: 3.0 Cubic Ft.
- Glass Viewing Area: 24 5/8” W x 13” H, 318.9 Sq. In.
*Overall efficiency as tested using B-415.1 using Cord Wood. LHV = Low Heat Value, HHV = High Heat Value.
