Description

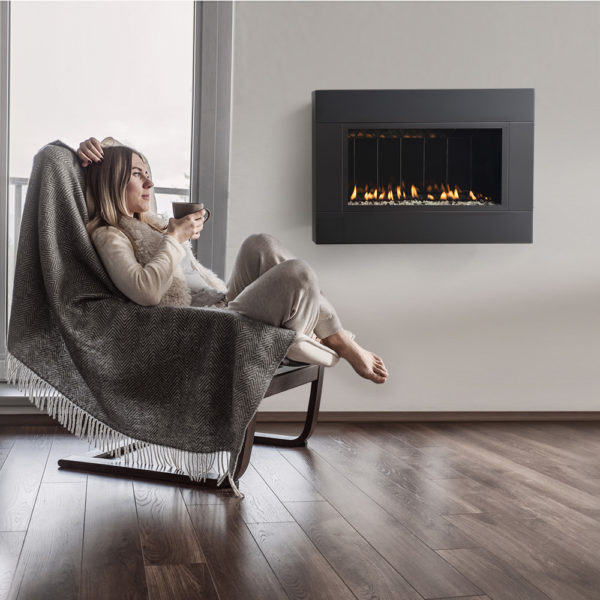

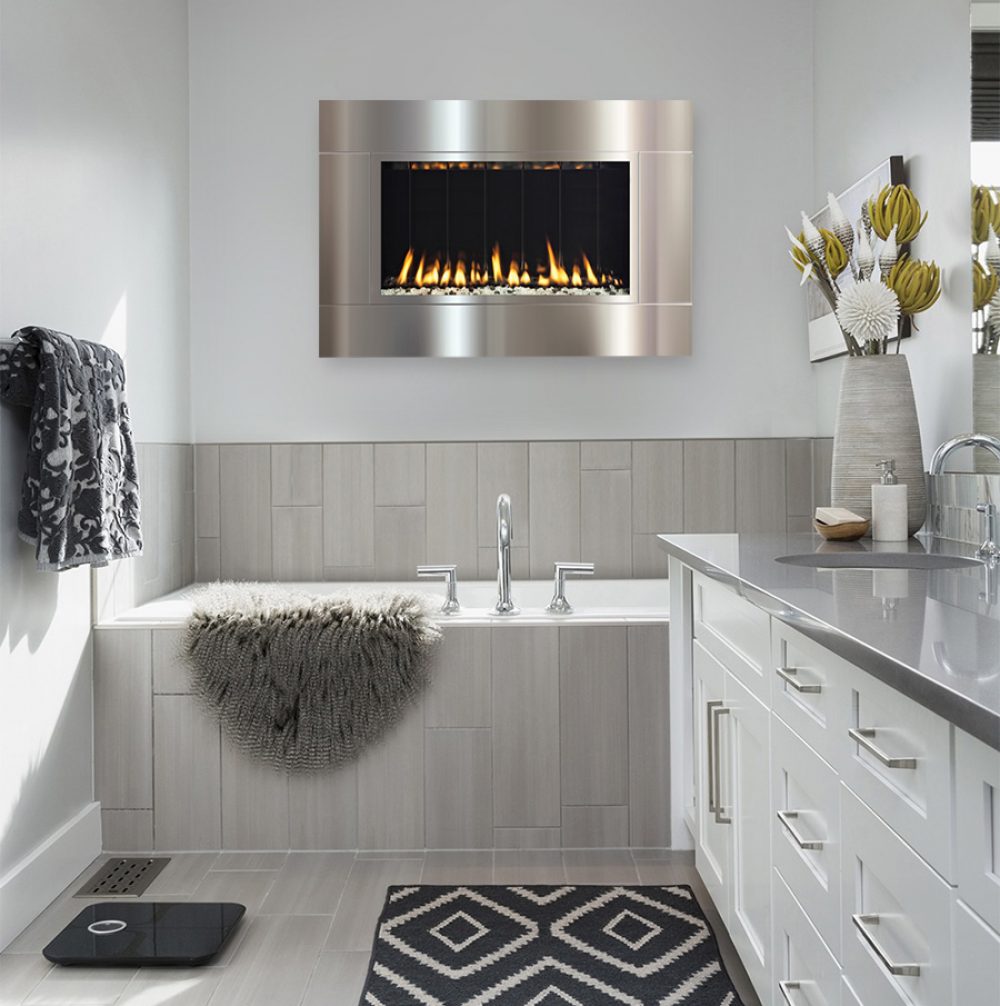

A new concept in fireplaces, the SÓLAS TWENTY6 is a revolutionary wall-mount, direct-vent gas fireplace. Simply hang the unit on an outside wall, and direct vent for a simple, effortless installation. On an inside wall, the fireplace can be installed with venting runs of up to 20′ (6.10m) vertical and 10′ (3.05m) horizontal, allowing for a wide range of installation options throughout your home. The SÓLAS TWENTY6 is a 38¾” (984mm) wide, 19,000 BTU “landscape” format unit designed for larger room settings.
This contemporary model is heater rated and offers a spectacular flame picture which is enhanced by the reflective porcelain enamel firebox liners. The SÓLAS TWENTY6 offers today’s discerning consumer designer styling with a wide range of surround colors and options available. Surrounds can be changed in a matter of seconds without the use of tools. So, if you decide to change your room’s decor, the fireplace can be updated quickly and inexpensively to complement the new look of your room. The SÓLAS TWENTY6 also has an optional Corner Mounting Kit available, allowing the heater to be mounted directly into a corner, saving space, and creating a unique focal point in your room.
Certified by OMNI-Test Laboratories, Inc., to ANSI Z21.88-2014/CSA 2.33-2014 Vented Gas Fireplace Heaters and CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes and CSA P.4.1-09
| BTU Rate Range | LP: 19,000 – 11,000/hr, NG: 19,000 – 11,000/hr |
|---|---|
| Glass Viewing Area | 26″ (660mm) W x 14.5″ (368mm) H |
| Dimensions | 38.75″ (984mm) W x 27.25″ (692mm) H x 7.625″ (194mm) D |
| Maximum Observed Steady State Efficiency (NG / LP) | 78.8% / 79.5% |
| Venting | Up to 20′ (6.10m) Vertical and 10′ (3.05m) Horizontal |
| Fireplace Clearance | Side Walls: 6.0″ (152mm), Corner: 6.0″ (152mm), Ceiling: 8.0″ (203mm), Floor: 3.0″ (76mm) |
| Remote Control | Programmable Thermostatic Remote Control |
| Weight | 130 lbs (59.1 kgs) |
| Fuel Specific | Natural Gas or Propane |
| Burner Media | Clear / Black Reflective Glass Crystals |
| Surround Options | Satin Black, Stainless Steel and Satin Black Combination, Stainless Steel and Steel Grey Combination, Stainless Steel, Steel Grey, Pure White |
Downloads
| Installation Manual | English (PDF) | French (PDF) |
|---|---|
| Dimensional Drawing | Download (PDF) |
| Dimensional Drawing | Download (DXF) |
| Product Catalog | Download (PDF) |
| Wall Templates | Download (PDF) |

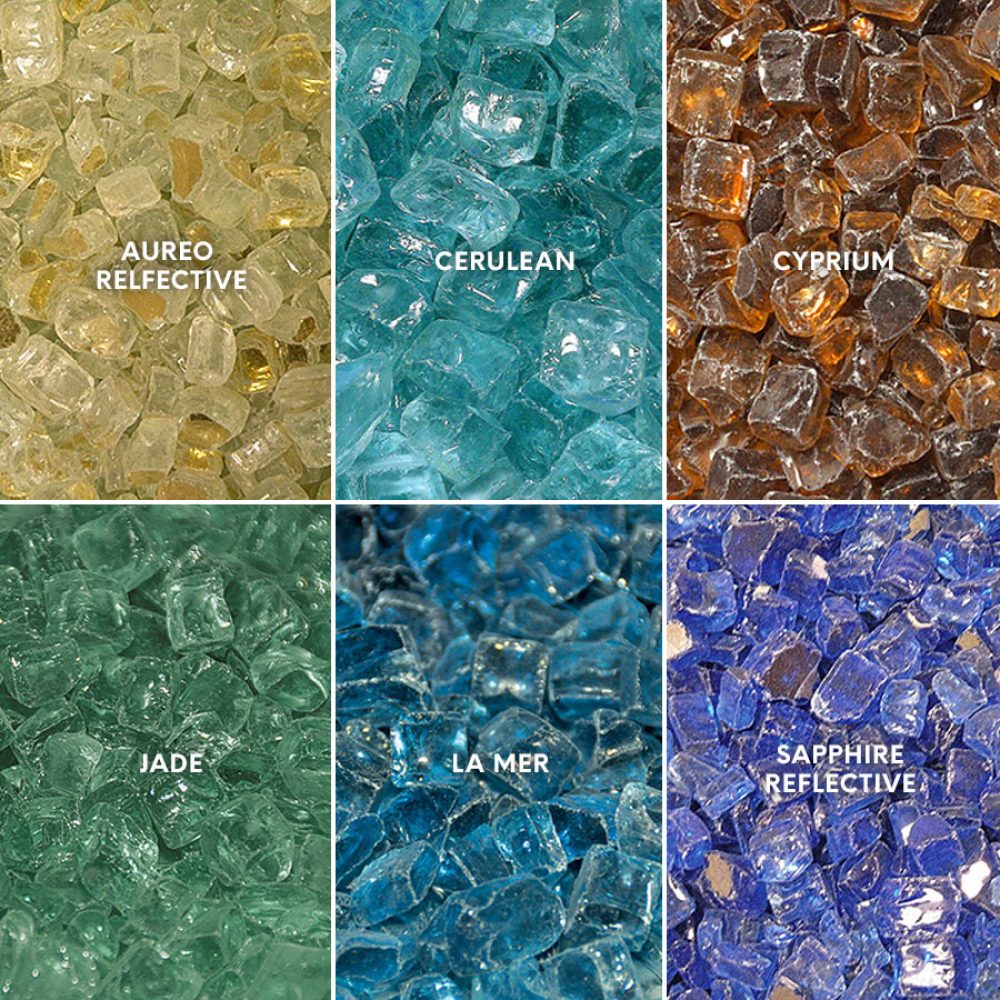

Colored Glass Media Options
La Mer
Sapphire Reflective
Jade
Cyprium
Cerulean
Aureo Relfective
