Rais Viva-L Classic

Categories: ,

Description

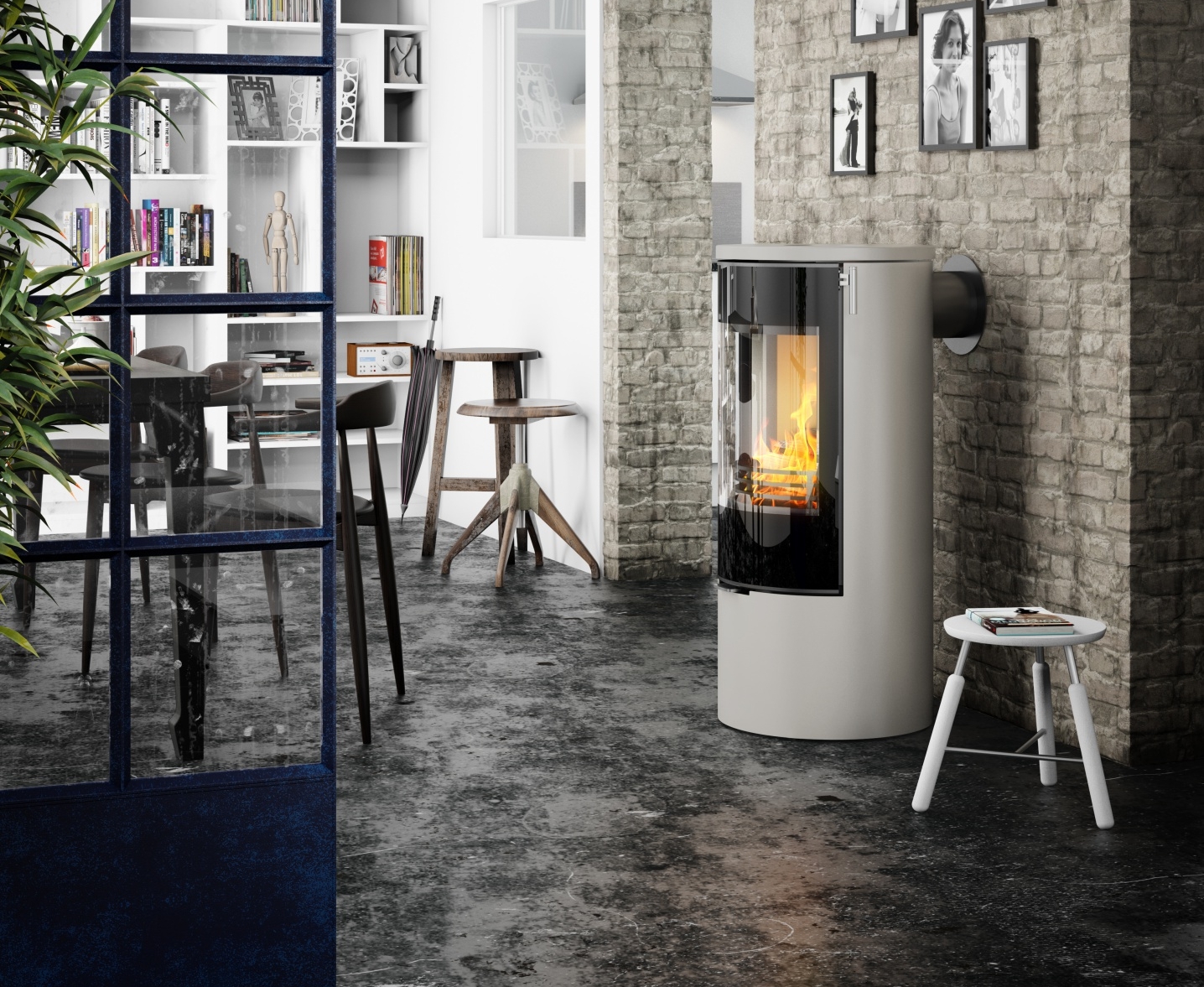

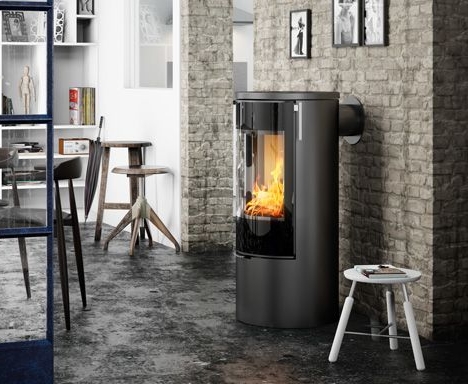

The circular Viva L 100 is a true proponent of the elegant and minimalist: it is simple, smooth and beautiful. A pane of massive proportions and a large combustion chamber bring even more pleasure from the fire – and are also super easy to install.  Achieves high standard of testings for a non-cataylitic wood burning stove with 1.1 emissions.

The new, redesigned “cabinet-style” handle is given a discrete placement at a convenient height.

The stove comes standard with steel door.

Easy to use and silent with it’s rubber plated air control handle.

A host of options to choose among: colors (black, platinum, nickel), side glass, top plates (stainless-steel, deep, soapstone) 360 degree swivel base.

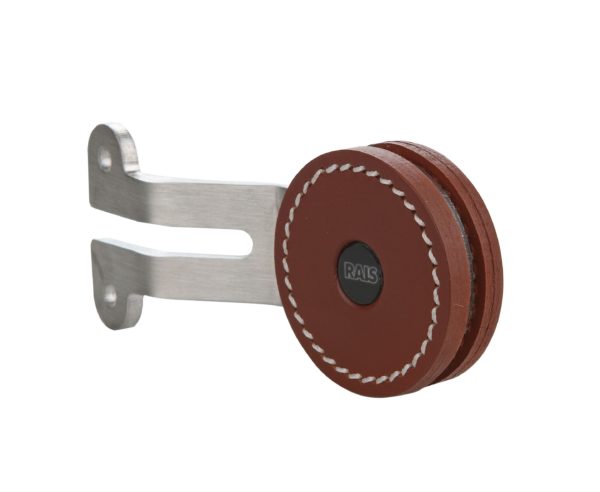

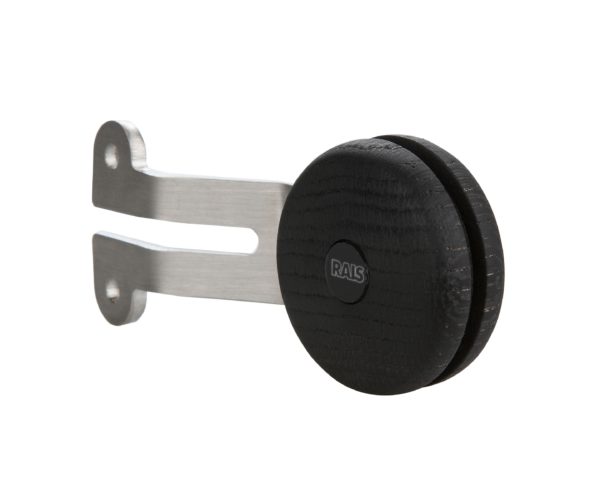

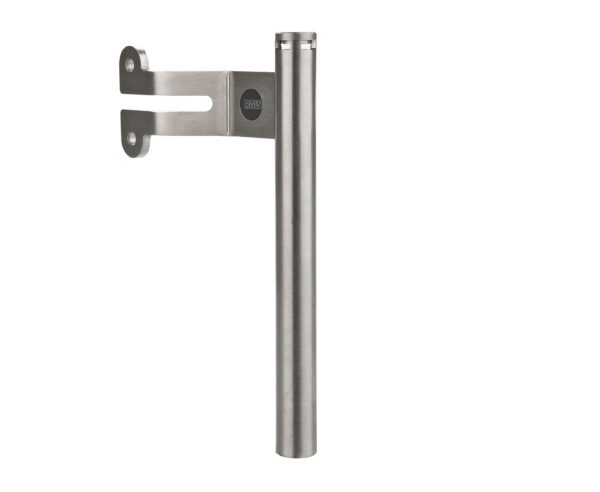

Wooden black handle comes standard. U.S. standard approved handle options include: (Stainless Steel, Leather)

Click for CBI test report for Viva L 100

SPECIFICATIONS:
HEAT
BTu output
27 kBTU
Heat range (min-max)
12-27 kBTU
Heating capacity (25-68 degrees F)
1000+ sq. ft
Emissions
1.1 g/hr
Efficiency
78%
DIMENSIONS (W-D-H)
Stove Exterior
18.5″ – 18.5″ – 39.3″
Firebox Interior
13.5″ – 11.5″ – 17.5″
Log Length
13″
Pipe Diameter
6 “
Distance from center of top exit to the back edge of the top plate
9.2 “
Distance from floor to center of top exit
37.7″
Center pipe in top to back edge of stove
9 “
Distance from floor to center of rear exit
35″
Floor to center of outside air connector
4.7 “
DISTANCE TO FLAMMABLE MATERIAL
Distance to combustible side wall
21 “
Distance to combustible back wall
12″
Corner Clearance to Combustible
14 “
WEIGHT
Stove
198 lb
Top Plate
77 lb
FEATURES
STANDARD
OPTION
Color: Black and Platinum
X
Color: Black
Steel Side
X
Steel Top Plate
X
Glass Door
X
Outside AirSystem
X
Shaker Grate and Ash Pan
X
Soapstone Top Plate
X
Top or Rear Smoke Exit
X
Top Smoke Exit
X
Turntable with Turnable Connecting Pipe
X
Air-Cooled Handle
