Rais Q-Tee II (with base)

Categories: ,

New, environmentally-friendly wood burning stove that you can use in your new construction or remodeling project.  This streamline designed stove is elegant, functional and stands out with it's superior environmental performance of .9/gph emissions.

Rais Q-Tee II is regarded as one of the cleanest burning non-catalytic stoves on the North American market.  The large fire box of this stove accepts a 17" piece of wood and can burn for many hours into the night.  The large window with stay-clean technology offers a magnificent view of the flames.  The door is available in a steel frame, or can be enhanced with an extra piece of glass on the outer surface as an option, so the whole door appears to be glass.  Base comes standard with cover plate for outside air piping, or can also be used as a full open storage.  Outside-air adapter system is an option.

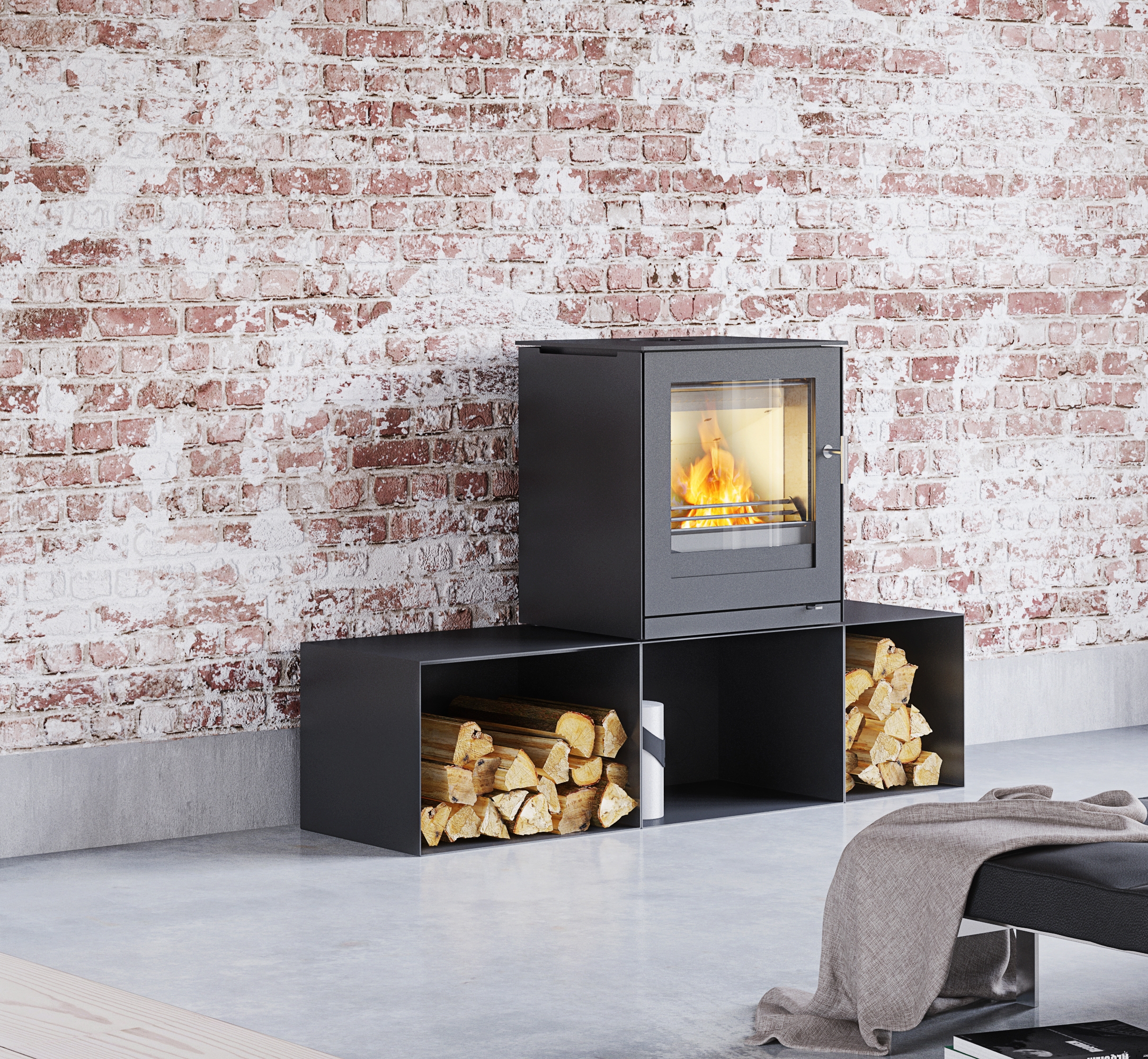

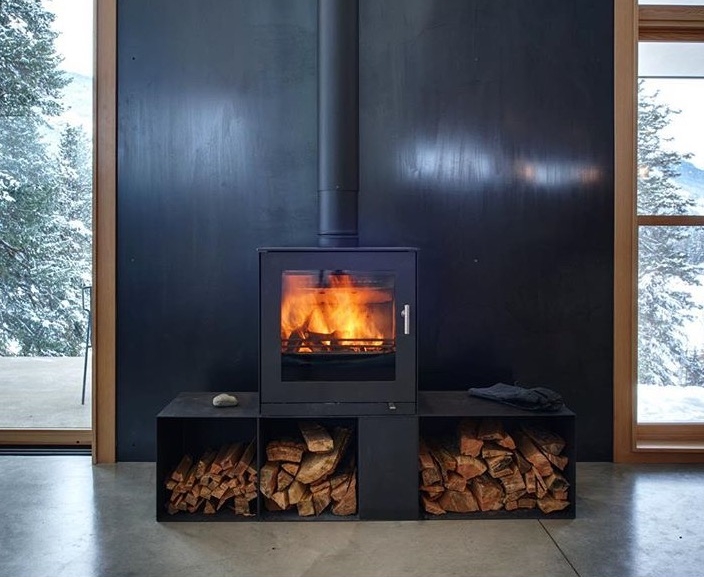

Small and large storage boxes, that are modular, can be added for additional seating next to a cozy fire.

Short leg option: 6.5" / 4.9" legs available  ( Using legs requires additional hearth protection with R value of  3.19)

Click here for CBI TEST REPORT

Click for  Manual

SPECIFICATIONS:
HEAT
BTu output
27 kBTu
Heat range (min-max)
10-27 kBTU
Heating capacity (25-68 degrees F)
1400 sq ft
Emissions
0.9 g/hr
Efficiency
75+%
DIMENSIONS (W-D-H)
Stove Exterior
22 9/10 - 17 - 42 1/3 "
Firebox Interior
17 1/2 - 9 3/5 - 10 1/5 "
Log Length
17 "
Pipe Diameter
6 "
Distance from center of top exit to the back edge of the top plate
5 1/8 "
Distance from floor to center of top exit
38 2/5th "
Distance from floor to center of rear exit
33 2/5 "
Floor to center of outside air connector
4 3/10 "
DISTANCE TO FLAMMABLE MATERIAL
Distance to combustible side wall
14 "
Distance to combustible back wall
12 "
Corner Clearance to Combustible
11 "
WEIGHT
Stove
350 LB
FEATURES
STANDARD
OPTION
Color: Black
-
-
Glass Door
-
X
Heat Shield
X
-
Shaker Grate and Ash Pan
X
-
Steel Door with Glass
X
-
Air-Cooled Handle
-
-
DOWNLOADS:

Owner's Manual
