Description

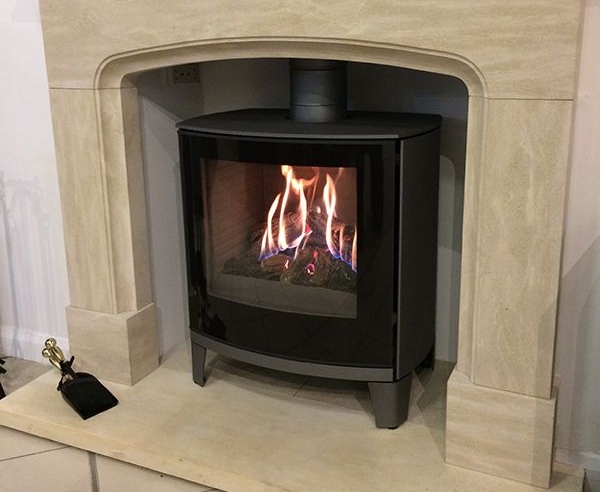

RAIS Q-Tee 2 C GAS beautifully rounded corners and an expansive curved glass, or steel frame door. Choose between several base and leg options, and door designs to add a personal touch. Fuel options: LP, or natural gas.
High Base height = 18″ Low Base height = 15″ Tall legs height = 6.5″ Short Legs height = 4.9″ legs
::SPECIFICATIONS::
HEAT
BTu output31 — kBTU
Heat range (min-max) — 8-31 kBTU
Heating capacity (25-68 degrees F) — 1000 sq. ft
Efficiency — 75+%
DIMENSIONS (W-D-H)
Stove Exterior — 26 W – 19.4 D – 23.5 H
Firebox Interior — 17 1/2 – 9 3/5 – 10 1/5 ”
Pipe Diameter — 4 x 6 5/8th
Distance from center of top exit to the back edge of the top plate — 7″
Distance from floor to center of top exit — 23.5″
Distance from floor to center of rear exit — 18.1
DISTANCE TO FLAMMABLE MATERIAL
Distance to combustible side wall — 15″
Distance to combustible back wall — 2″
Corner Clearance to Combustible –13″
WEIGHT
Stove382 lb
| FEATURES | STANDARD | OPTION |
| Color: Black | – | – |
| Glass Door | – | X |
| Large Box | – | X |
| Small Box | – | X |
| Steel Door with Glass | X | – |
| Top or Rear Smoke Exit | – | X |
| Top Smoke Exit | – | X |
| Air-Cooled Handle | – | – |
