Description

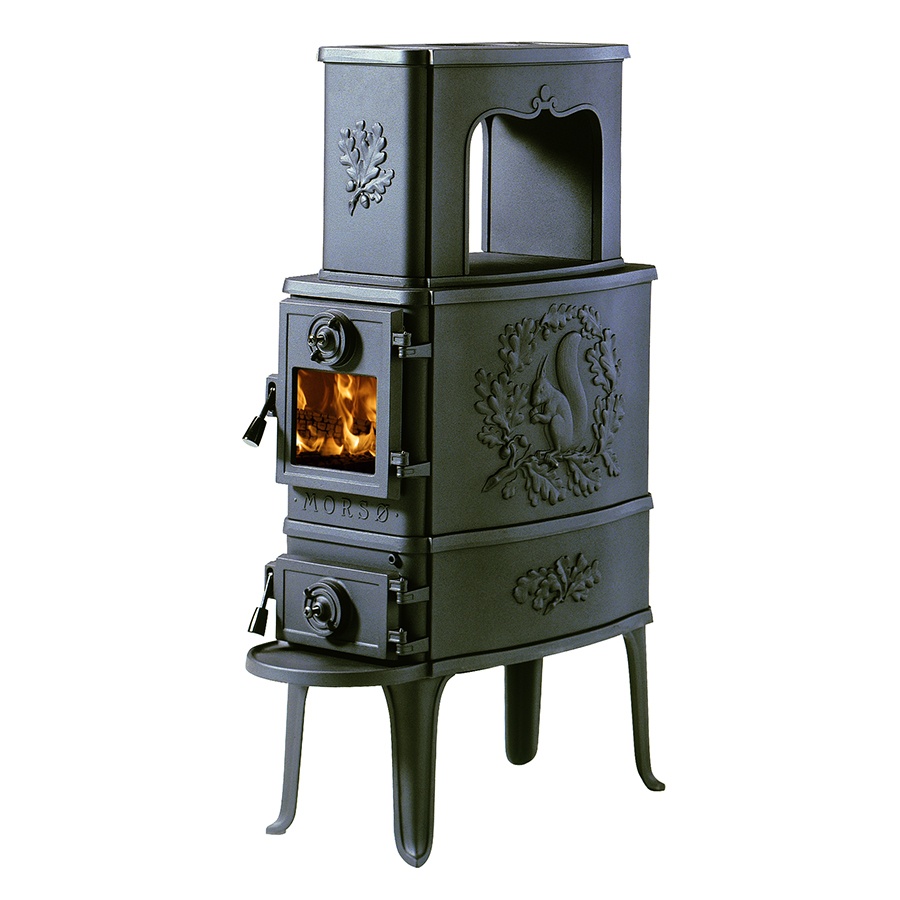

Morsø wood stove 2B Classic is a true classic which has been manufactured in different versions for more than 70 years.
A practical classic wood stove
This extremely popular cast-iron wood stove can, with its long firebox, accommodate logs up to 18 inches in length. It is a radiant wood stove and is equipped with a riddling grate, ash tray and ashpan, and, can be fired with wood.
Like most other Morsø wood stoves, the 2B Classic meets the most stringent environmental requirements in the world.
Morsø’s characteristic 2B Classic with radiant heat is still a very popular series. The long firebox is large enough to take logs 18 inches long. It can heat up to 1,200 sq.
TECHNICAL DATA
PROPERTIES
- Pre-heated secondary air supply
- Ash Can
- Airwash system
- Tertiary Air
- Riddling grate system
TECHNICAL DATA
- Radiant Heat
- 10 year limited warranty
- Gasketed seams for tight seals
- Chromium treated internal casting for durab
- Reversible flue collar
- Non catalytic burn technology
- Clean-burning air wash system
- Secondary air supply
- Riddling grate system/shaker grate
FUEL
- Wood
APPROVALS
- DIN+/AT
- EN
SPECIFICATIONS
| Maximum Heat | 35,000 |
| Log size | 18″ |
| Max. Area Heated | 1200 ft2 |
| Firebox Dimensions | 7″ W X 21 1/2″ D |
| Firebox volume/capacity | 0.82 ft3 |
| Outside air supply | Not available |
| Gross Weight | 253 lbs |
| Rated Output (kw) | 8 |
| Operating Output (kw) | 6-10 |
| Heats (m2) | 90 – 150 |
| Height (mm) | 1090 |
| Width (mm) | 328 |
| Dept (mm) | 718 |
| Flue outlet top | Ø 120 |
| Weight (kg) | 125 |
| Chamber Width (cm) | 45 |
FUEL
- Wood
APPROVALS
- DIN+/AT
- EN
CLEARANCE TO COMBUSTIBLES
CLEARANCE TO COMBUSTIBLES
| Rear (mm) | 400 |
| Sides (mm) | 850 |
| Basic Clearance using single wall pipe top vent | |
| Stove to side wall | 26″ |
| Stove to rear wall | 7″ |
| Stove to corner | 22″ |
